ITS-IPJ-REV-R660-GX11M1 IMPINJ XSPAN Gateway RFID Reader

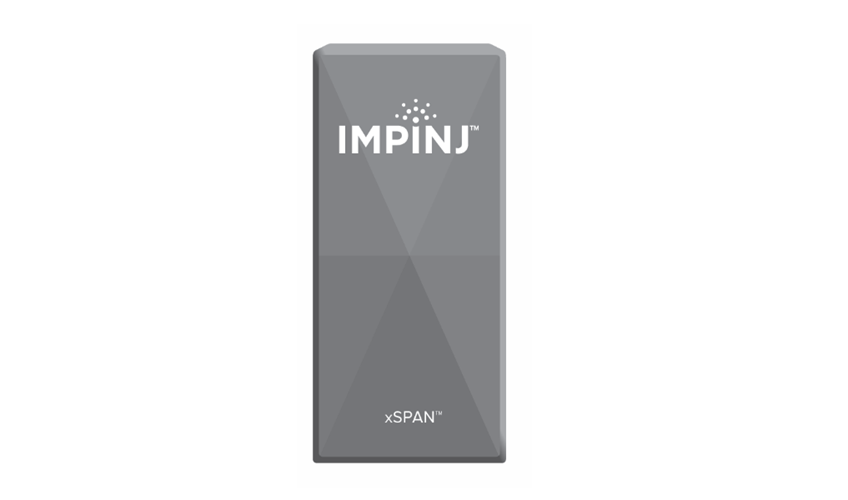

IMPINJ XSPAN Gateway RFID Reader
IMPINJ IPJ-REV-R660-GX11M1 -The xSpan Gateway is a high performance RAIN RFID reader system with an integrated phased array antenna. The phase array antenna supports thirteen beams organized into three sectors. Each beam can be either horizontally or vertically polarized. An on-board processor controls the beam direction, orientation and polarization. The system has the capability to steer its antenna beam along a single axis to read RFID tags over a rectangular area and detect item movement. The gateway can be mounted on a ceiling or a wall with power and control through a Power over Ethernet (PoE) connection.

Specifications

Electronic Specifications
Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Operating Frequency UHF (860- 960 MHz), region dependent
Transmit Power 13.8 W
Max Receive Sensitivity -84 dBm
Max Read Distance Not published
Power Source (PoE): 802.3af-2003 Class 3
Power Source (External DC Power): +24V DC locking power connector for use with optional AC power supply
Physical Characteristics
Dimension 476 x 220 x 88 mm (18.75 x 8.66 x 3.45 in)
Weight 2.7 kg (5.97 lbs)
Operating Temperature -20 °C to +50 °C (-4 °F to +122°F)
