ITS-A7060 SlimLine A7060 Linearly Multi-purpose Antenna

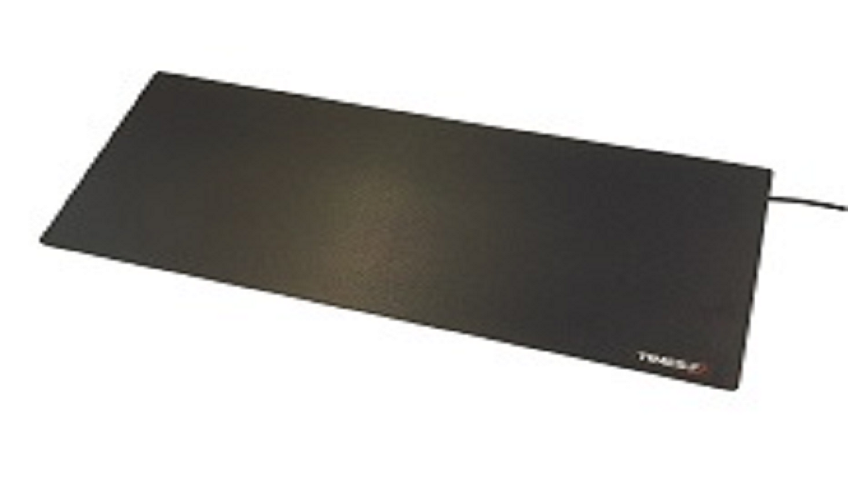

SlimLine A7060 Linearly Multi-purpose Antenna
Times-7 A7060 -Part of the SlimLine range of shelving antennas, the A7060 is sought after for RFID deployments from retail product tracking to industrial / workshop tool tracking. At just 8 mm / 0.3 in. thick, the durable, high performance A7060 is specifically designed for existing shelving systems, providing real-time asset & product identification / inventory management. Custom lengths are available.

Specifications

Dimensions 600 mm x 250 mm x 8 mm | 23.6 “ x 9.8 “ x 0.3 “
Weight 1.2 kg / 2.6 lbs.
Connector/Cable Type SMA female side fly lead (300 mm / 1‘) / 195
Operating Storage Temperature -20° to +55°C / -30° to +65°C | -4° to +131°F / -22° to +149°F
Far Field Gain 9 dBi typical
3 dB Beamwidth 30° in yz-plane | 65° in xz-plane
VSWR 1.6 typical
Front to Back Ratio -24 dB
Axial Ratio N/A
