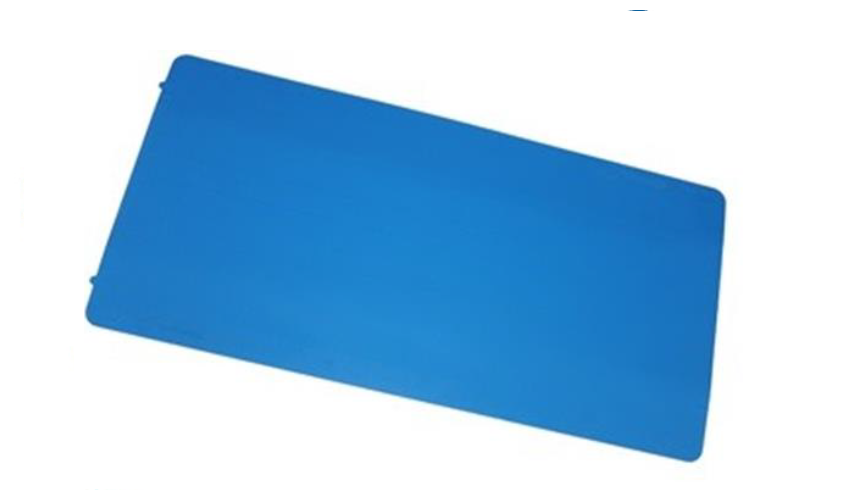

ITS-A5530C SlimLine A5530C Circulary Ground Mat Antenna

SlimLine A5530C Circulary Ground Mat Antenna
Times-7 A5530C -UHF RFID Ground Mat Antenna is an ultra-low profile ground mat antenna. Its total thickness is just 12 mm and can be used for UHF RFID applications optimized for moving products or assets, in particular where side antennas are unsuitable. Its rugged, durable design is suitable for industrial applications.

Specifications

Dimensions 1220 mm x 600 mm x12 mm | 4’ x 2’ x 0.5”
Weight 8.4 kg / 18.5 lbs.
Connector/Cable Type SMA female side fly lead (300 mm / 1 ft.) / RG 316
Operating Storage Temperature 0° to +50°C / -30° to +60°C | 32° to +122°F / -22° to +140°F
Far Field Gain 9.5 dBiC typical
3 dB Beamwidth 13° yz-plane | 85° xz-plane
VSWR 2 typical
Front to Back Ratio -18 dB
Axial Ratio N.A.
